SECURE for Cycle Paths and Roads

Innovative protection against roots
NOAH root protection system (WSS)

Innovative protection against roots

If you look at the NOAH systems, ranging from combatting water with water to dyke reinforcements, root protection is just a further development. We have been carrying out tests successfully in this area since 2006.

And now we have this perfect rotary cutter for almost any type of soil!

This cutter is not just suitable for laying a root protection foil, but can also be used to lay cables and pipes as a logical consequence of further developments.

Roots do not have a hope.

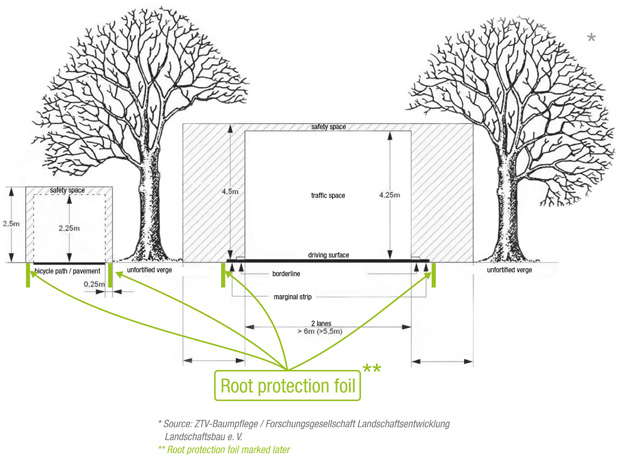

The integrated root protection foil is waterproof, environmentallyfriendly and ensures that no roots will grow into footpaths or roads any more.

A 25-year guarantee - damage by roots is now a thing of the past.


The advantages of the NOAH root protection system

• Easy to insert
• No more roots growing through
• Low costs
• 100% waterproof
• 100% environmentally-friendly
• Weldable at any point
• Pressure resistance of 3455 kN
• High time and financial savings
• 25-year guarantee
• Daily output up to 2,000 m (depending on the soil characteristics)


Innovative protection against roots
Laying/cutting system (VFS)

Further uses for the ditch cutter

There are a number of other uses for our ditch cutter, in addition to our root protection system:

General civil engineering

• Drainage pipes
• Cable trenches
• Utilities trenches
• Trenches for geothermal energy cables
• Trenches for Berlin type pit linings

Power stations and solar panel units

• Cable trenches for feeder cables
• Linking trenches at solar parks

Building waste disposal sites

• Trenches for loop wiring systems etc.



Facts

We have an enormous advantage over the conventional construction of cable trenches (with excavators etc.).

An excavator takes approx. 3.5 hours for a trench that is 1 m deep, 0.30 m wide and 100 m long. This means daily output of approx. 300 m.

Our trench cutter offers daily output of approx. 1500 – 2000 m – depending on the type of soil. This is 5 – 6.5 times more than an excavator.

• The basic unit is a Fendt 927 tractor with 270 hp
• The cutting wheel cuts a trench that is 30 cm wide and up to 1.30 m deep for soil classes 1 – 6
• Carbide-tipped circular cutter on the cutting wheel
• 30 kN force in vibrating plate
• 25 cm wide vibrating plate
• The cutting wheel can be moved to the right or left away from the centre
• Depending on the task, the discharged material is stored at the side or fed back into the trench and compressed
• Cutting/inserting/compressing – all in one working operation
